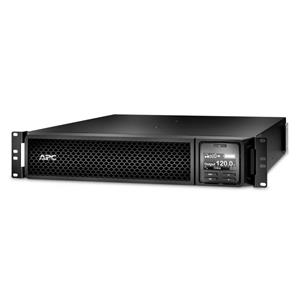

APC SRT2200RMXLA-NC Smart-UPS SRT 2200VA 120v Double-Conversion Online Network

APC SRT2200RMXLA-NC Smart-UPS SRT 2200VA 120v Double-Conversion Online Network

New Batteries, Load-Tested, Grade "A"

$1,975.00 $875.00

SKU: MR_SRT2200RMXLANC-RNEW

Availability: 1 item(s)

Qty:

Be the first to review this product

Estimate Shipping Cost

Enter your destination to get a shipping estimate

* Country
Zip/Postal Code

Details

APC SRT2200RMXLA-NC Smart-UPS SRT 2200VA 120v Double-Conversion On-Line Network Card AP9631

Refurbished By Seller in Grade "A" Condition, Tested under load & Works like a Champ
New internal Batteries, 1 Year Warranty on the Batteries and 90 Days on the UPS

Designed specifically to enhance the features that matter most to you

The APC Smart-UPS On-Line SRT2200RMXLA-NC provides high-density, double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications.

Best-in-class power density: More real power in watts, .9pf on the SRT2200RMXLA-NC
High-efficiency “Green Mode”: Achieves 97% efficiency, which saves utility and cooling costs without compromising performance or reliability. Energy Star compliant.
Operate without battery: Ability to immediately protect equipment when power returns after a complete discharge of the battery.
Built-in energy meter: Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
Rack Mountable: Ability to easily mount into a rack or enclosure
Pre-installed Network Management Card with Environmental Monitoring: Allows the ability to manage and monitor the UPS remotely. AP9631 Network Card pre-installed.
Optional additional battery packs: can be added to increase runtime
Extended runtime for business critical devices such as
Mid Range Servers (Windows/Linux)
Business critical servers
WiFi Applications
Data Network Backbones
Data Storage
Medical Labs
Imaging Systems
ATM Machines
Programmable Logic Controllers (PLC)
Cellular Sites
Voice Over IP (VOIP)

Output

Output power capacity
1.8 KWatts / 2.2 kVA
Max Configurable Power (Watts)
1.8 KWatts / 2.2 kVA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections

(6) NEMA 5-20R (Battery Backup) (1) NEMA L5-20R (Battery Backup)
Bypass
Built-in Bypass

Input

Nominal Input Voltage
120V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
NEMA 5-20P
Cord Length
6ft ( 1.83meters )
Number of Power Cords
1

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
3hour(s)
Nominal Battery Voltage
72V
Replacement Battery
APCRBC141
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-SRT-2200VA-RM-120V-Network-Card
Runtime

View Runtime Graph

View Runtime Chart
Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
340Joules
Filtering
--

Physical

Maximum Height
3.35inches ( 85mm , 8.5CM )
Maximum Width
17.0inches ( 432mm , 43.2CM )
Maximum Depth
23.0inches ( 584mm , 58.4CM )
Rack Height
2U
Net Weight
55.0lbs. ( 25.0KG )
Shipping weight
75.0lbs. ( 34.02KG )
Shipping Height
9.7inches ( 246mm , 24.6CM )
Shipping Width
23.6inches ( 599mm , 59.9CM )
Shipping Depth
31.9inches ( 810mm , 81.0CM )
Color
Black
