Details

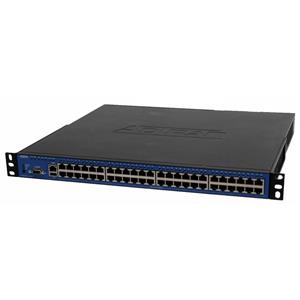

ADTRAN Netvanta 1638P 1700569F1 48 Ports 10/100/1000 PoE Gigabit Ethernet Switch
Item is Used with Normal Wear and Tear, Tested and Working.
Comes with Rack Ears and Power Cord Only.
Features:
The NetVanta® 1638P is a managed, 48-port PoE, Layer 3, Gigabit Ethernet switch providing advanced access and distribution capabilities for Small to Medium-sized Enterprises (SMEs). With the combination of the advanced multi-layer switching fabric, ActivChassis stacking, high bandwidth capabilities, and enhanced Quality of Service (QoS) features, the NetVanta 1638P is ideal in Gigabit-to-the-desktop deployments, and converged voice and data networks.
Hardware
The NetVanta 1638P rackmount switch provides 48 Gigabit Ethernet ports and two high-speed option slots. Together these option slots can accommodate up to four 16-Gigabit Ethernet high-speed links and provide up to 128 Gbps of bandwidth between interconnected NetVanta 1638P switches. A field replaceable power supply and fan assembly ensure maximum uptime.
ActivChassis
The NetVanta 1638P supports ADTRAN’s ActivChassis stacking technology, which allows up to eight NetVanta 1600 Series switches to be interconnected and actively managed as a single, logical chassis-like system—up to 400 switch ports can share a single configuration file and single IP address—allowing SMEs to cost-effectively add capacity, simplify administration of interconnected switches and improve network resiliency. When used with the NetVanta 1600 Dual Stacking XIM, backplane capacity can be enhanced up to 128 Gbps to support the most demanding business applications. ActivChassis also enables switches located in multiple wiring closets across distances up to 10,000 meters to be connected and managed as single switch, providing ultimate flexibility in network configurations. Combined with features designed for redundancy and high availability, the NetVanta 1600 Series switches provide the best performance and value in the industry.
Multi-layer Switching
The NetVanta 1638P supports advanced multi-layer (Layer 2 and Layer 3) switching. It supports static routes, RIP V1/V2, OSPF, Border Gateway Protocol (BGP) and Virtual Router Redundancy Protocol (VRRP), allowing it to easily scale from small businesses to enterprise-sized networks.
Standards Based Protocols
Based on the ADTRAN® Operating System (AOS), this device supports Link Layer Discovery Protocol (LLDP) which autodiscovers neighboring Ethernet devices, simplifying integration into multi-vendor environments.
VoIP Ready
The NetVanta 1638P is VoIP-ready out of the box. The ability to automatically configure IP phones using LLDP-MED, and the ability to separate voice traffic onto voice VLANs, helps ease the deployment of Voice over IP (VoIP).
Quality of Service
NetVanta switches also support QoS to prioritize mission-critical traffic like VoIP and control network congestion. The NetVanta 1638P offers 802.1p and DiffServ Class of Service (CoS). It also supports frame tagging, as well as enforcement of tagged traffic received from trusted sources. Four egress queues per port are available for assigning traffic priorities using Weighted Round Robin (WRR) and Strict Priority Scheduling.
Power over Ethernet (PoE)
The NetVanta 1638P provides up to 370 watts of 802.3af (PoE), 802.3at (PoE+) and Legacy PoE for powering IP phones, Wireless Access Points (WAPs), IP video cameras and other devices requiring LAN Power.
Security
The NetVanta 1638P offers a variety of data security features including denial of service protection, port security, multilevel user passwords, Secure Shell (SSH) and Secure Socket Layer (SSL) for encrypted user login, and Access Authentication and Authorization (AAA) for authentication with RADIUS and TACACS+. With features such as 802.1x and port security, administrators can be assured that only authorized users are allowed access to the network. AOS also features DHCP Network forensics allowing administrators to quickly locate specific clients on the network directly from the management session. This protocol in conjunction with Desktop auditing allows administrators to verify client security information.
Port Scheduler
The NetVanta 1638P allows ports to be enabled or disabled based on time of day. This ability to schedule available ports allows for added security and can significantly lower power consumption during off hours saving on utility cost.
iSCSI Optimized
All ADTRAN NetVanta Gigabit Ethernet switches are optimized for iSCSI Storage Area Networks (SANs) deployments. Network administrators can take advantage of features such as Jumbo frame support (up to 12K), separation of iSCSI network traffic utilizing VLANs, and 802.3x flow control to seamlessly integrate ADTRAN switches with iSCSI SANs devices.
Administration
AOS offers both a Command Line Interface (CLI) that mimics the widely deployed, industry de facto standard and an intuitive Web-based Graphical User Interface (GUI) with step-by-step configuration wizards. For automating setup and configuration, The NetVanta 1638P supports Auto-Config which provides the ability to automatically obtain the switch configuration via DHCP.
Item is Used with Normal Wear and Tear, Tested and Working.
Comes with Rack Ears and Power Cord Only.
Features:
- 48-port multi-layer Gigabit Ethernet switch with up to four 10-Gigabit uplink ports
- 48 – 10/100/1000Base-T Ports
- Two high-speed interface slots
- Advanced stacking capabilities with ActivChassis
- 802.3af (PoE), 802.3at (PoE+), and Legacy PoE
- Non-blocking, up to 176 Gbps switching capacity
- Line rate Layer 2 and Layer 3 switching
- Static routes, RIP, OSPF, BGP and VRRP
- Advanced QoS with support for 802.1p and DiffServ prioritization with four queues per egress port
- 802.1Q VLANs, Private VLANs and VLAN assignment via 802.1x
- VoIP ready with LLDP/LLDP-MED and voice VLANS
- Automate actions with integrated Port Scheduler and TCL scripting
- Business-class security with RADIUS, TACACS+, 802.1x and port security
- Field replaceable power supply and fans
- Optimized for iSCSI SANs solutions
- Wi-Fi® Access Controller for centralized management of NetVanta Wireless Access Points
- Cable diagnostics provide easy to use troubleshooting tools for copper cable
- Familiar CLI and Web GUI
The NetVanta® 1638P is a managed, 48-port PoE, Layer 3, Gigabit Ethernet switch providing advanced access and distribution capabilities for Small to Medium-sized Enterprises (SMEs). With the combination of the advanced multi-layer switching fabric, ActivChassis stacking, high bandwidth capabilities, and enhanced Quality of Service (QoS) features, the NetVanta 1638P is ideal in Gigabit-to-the-desktop deployments, and converged voice and data networks.
Hardware
The NetVanta 1638P rackmount switch provides 48 Gigabit Ethernet ports and two high-speed option slots. Together these option slots can accommodate up to four 16-Gigabit Ethernet high-speed links and provide up to 128 Gbps of bandwidth between interconnected NetVanta 1638P switches. A field replaceable power supply and fan assembly ensure maximum uptime.
ActivChassis
The NetVanta 1638P supports ADTRAN’s ActivChassis stacking technology, which allows up to eight NetVanta 1600 Series switches to be interconnected and actively managed as a single, logical chassis-like system—up to 400 switch ports can share a single configuration file and single IP address—allowing SMEs to cost-effectively add capacity, simplify administration of interconnected switches and improve network resiliency. When used with the NetVanta 1600 Dual Stacking XIM, backplane capacity can be enhanced up to 128 Gbps to support the most demanding business applications. ActivChassis also enables switches located in multiple wiring closets across distances up to 10,000 meters to be connected and managed as single switch, providing ultimate flexibility in network configurations. Combined with features designed for redundancy and high availability, the NetVanta 1600 Series switches provide the best performance and value in the industry.
Multi-layer Switching
The NetVanta 1638P supports advanced multi-layer (Layer 2 and Layer 3) switching. It supports static routes, RIP V1/V2, OSPF, Border Gateway Protocol (BGP) and Virtual Router Redundancy Protocol (VRRP), allowing it to easily scale from small businesses to enterprise-sized networks.
Standards Based Protocols
Based on the ADTRAN® Operating System (AOS), this device supports Link Layer Discovery Protocol (LLDP) which autodiscovers neighboring Ethernet devices, simplifying integration into multi-vendor environments.
VoIP Ready
The NetVanta 1638P is VoIP-ready out of the box. The ability to automatically configure IP phones using LLDP-MED, and the ability to separate voice traffic onto voice VLANs, helps ease the deployment of Voice over IP (VoIP).
Quality of Service
NetVanta switches also support QoS to prioritize mission-critical traffic like VoIP and control network congestion. The NetVanta 1638P offers 802.1p and DiffServ Class of Service (CoS). It also supports frame tagging, as well as enforcement of tagged traffic received from trusted sources. Four egress queues per port are available for assigning traffic priorities using Weighted Round Robin (WRR) and Strict Priority Scheduling.
Power over Ethernet (PoE)
The NetVanta 1638P provides up to 370 watts of 802.3af (PoE), 802.3at (PoE+) and Legacy PoE for powering IP phones, Wireless Access Points (WAPs), IP video cameras and other devices requiring LAN Power.
Security
The NetVanta 1638P offers a variety of data security features including denial of service protection, port security, multilevel user passwords, Secure Shell (SSH) and Secure Socket Layer (SSL) for encrypted user login, and Access Authentication and Authorization (AAA) for authentication with RADIUS and TACACS+. With features such as 802.1x and port security, administrators can be assured that only authorized users are allowed access to the network. AOS also features DHCP Network forensics allowing administrators to quickly locate specific clients on the network directly from the management session. This protocol in conjunction with Desktop auditing allows administrators to verify client security information.
Port Scheduler
The NetVanta 1638P allows ports to be enabled or disabled based on time of day. This ability to schedule available ports allows for added security and can significantly lower power consumption during off hours saving on utility cost.
iSCSI Optimized
All ADTRAN NetVanta Gigabit Ethernet switches are optimized for iSCSI Storage Area Networks (SANs) deployments. Network administrators can take advantage of features such as Jumbo frame support (up to 12K), separation of iSCSI network traffic utilizing VLANs, and 802.3x flow control to seamlessly integrate ADTRAN switches with iSCSI SANs devices.
Administration
AOS offers both a Command Line Interface (CLI) that mimics the widely deployed, industry de facto standard and an intuitive Web-based Graphical User Interface (GUI) with step-by-step configuration wizards. For automating setup and configuration, The NetVanta 1638P supports Auto-Config which provides the ability to automatically obtain the switch configuration via DHCP.
Specifications
| Brand | ADTRAN |
|---|---|
| Type | Ethernet Switch |
| Number of LAN Ports | 48 |
| Ethernet Technology | Gigabit Ethernet (1000-Mbit/s) |
| Model | NetVanta 1638P |
| Interface | Ethernet (RJ-45) |
| Network Management Type | Fully Managed |
| Product Line | NetVanta |
| Maximum Data Transfer Rate | 1:3 |
| Form Factor | Rack Mountable |
| Maximum LAN Data Rate | 1000 Mbps |
| Network Connectivity | Wired-Ethernet (RJ-45) |
| Number of WAN Ports | 48 |
| RAID Levels | 1+0 |
| Layer | 3 |
