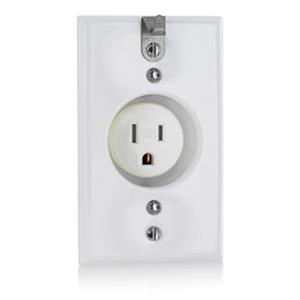

Leviton T5015-CHW Single Receptacle Outlet 15A 125V White NEMA 5-15R Recessed

$18.49 $14.14
SKU: OG-T5015-CHW-NEW

Availability: 10 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

Leviton T5015-CHW Single Receptacle Outlet 15A 125V White NEMA 5-15R Commercial Specification Grade Recessed Clock-Hanger Tamper-Resistant, Smooth Face Back or Side Wire 2-Pole 3-Wire 078477703489

At Rated Voltage: 1/2 HP
Amperage: 15 A
Dielectric Voltage: Withstands 2000V per UL498
Pole: 2
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3

Flammability: Rated V-2 per UL94
Operating Temperature: -40°C to 75°C

Body Material: Nylon
Face Material: Nylon
Grounding Screw: Steel
Line Contacts: Brass Triple-Wipe
Mounting Screws: Steel
Strap Material: Zinc-Plated Steel
Wallplate: Painted Steel

Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side

Device Type: Single Receptacle Outlet
Feature: Tamper-Resistant
ANSI: C-73 Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
Certification/Listing: cCSAus, NOM-ANCE
NEMA: WD-1 & WD-6

Specifications

Condition New
Brand Leviton
Operation Method Outlet
Application Commercial, Data Centers, Large Appliances
Outlet Style Single
Mounting Style Floor
Suitable For Interior
Number of Outlets 1
Color White
Model T5015-CHW
MPN T5015-CHW
Country/Region of Manufacture United States
