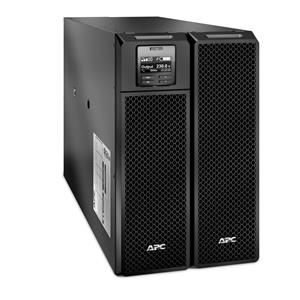

APC SRT8KXLI 8kVA 208V On-Line Double-Conversion Network Smart-UPS Power Backup

New In Open Box
$4,900.00
SKU: MR_SRT8KXLI-NOB/RNEW

Availability: 2 item(s)

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

APC SRT8KXLI 8kVA 208V On-Line Double-Conversion Network Smart-UPS Power Backup

Shipping/Packaging: Item is Heavy and best way to ship is in multiple Boxes, We will Remove battery cartridges and ship it in separate box, or ship via Freight(to Commercial Address With Loading Dock).
Condition: Item Is new, Never used, in Original open APC box with all original Accessories
Warranty:  1 Year warranty on the Batteries(Brand New Batteries) 90 days on the UPS from Seller

SRT8KXLI Features

Key Features

Output power capacity
8.0kWatts / 8.0kVA
Output Connections
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(3) IEC Jumpers (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V, 400V 3PH
Input Connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

Output

Max Configurable Power (Watts)
8.0kWatts / 8.0kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Bypass
Internal Bypass (Automatic and Manual)

Input

Input frequency
40 - 70 Hz (auto sensing)
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load), 173 - 476 (half load)V
Other Input Voltages
220, 240, 380, 415

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
1.5hour(s)
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
2
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
1728
Extended Run Options

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
480Joules

Physical

Maximum Height
17.0inches (432MM, 43.2CM)
Maximum Width
10.35inches (263MM, 26.3CM)
Maximum Depth
28.15inches (715MM, 71.5CM)
Net Weight
246.0lbs. (111.82KG)
Shipping weight
279.0lbs. (126.82KG)
Shipping Height
18.15inches (461MM, 46.1CM)
Shipping Width
23.62inches (600MM, 60.0CM)
Shipping Depth
39.37inches (1000MM, 100.0CM)
Color
Black
